| Description | Model | Configuration | Scanner |

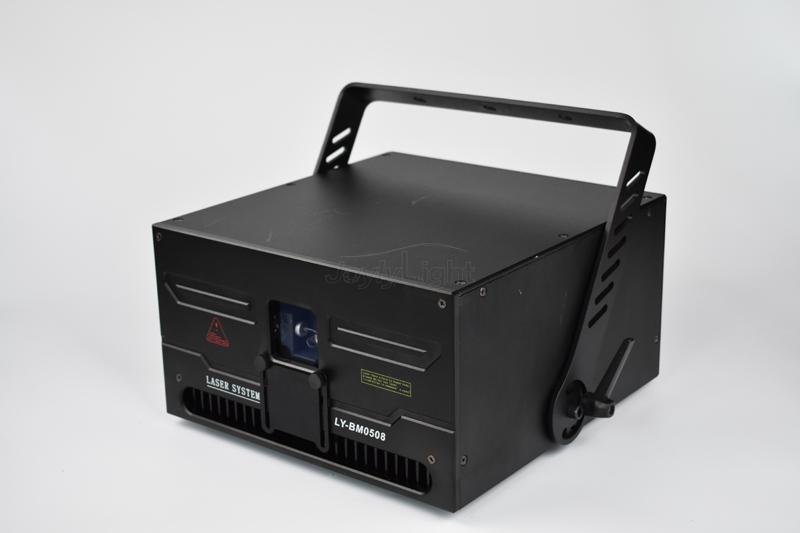

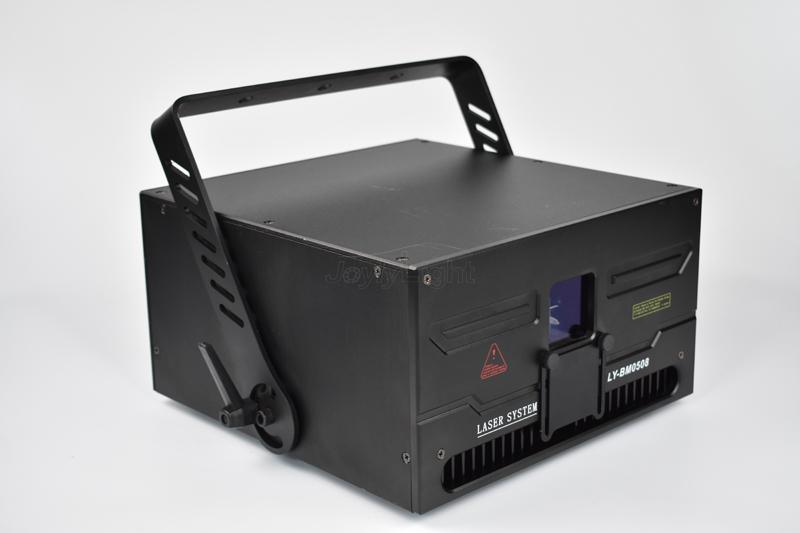

| 8W RGB colour Animation laser light | LY-BM0508 | Red:2000mw/638nm Green:2000mw/520nm Blue:4000nm/447nm | Scanner 35KPPS |
| 6W RGB full colour Animation laser light | LY-BM0506 | Red: 1500mw/638nm Green: 1500mw/520nm Blue: 3000nm/447nm | Scanner 30KPPS |
| (Green)5W SD Card Green Animatiom laser light | LY-SDG005 | Green: 5000mw/520nm | Scanner 35KPPS |
Rated voltage: AC110-220V
Rated frequency: 50-60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects)
Modulation signal: TTL modulation (analog modulation)
Scanning System: 30- 35KPPS
Laser :Red: 638nm Green: 520nm Blue: 447nm
Scanning angle: plus or minus 20 degrees
Control mode: DMX512, voice control, self-propelled, computer ILDA interface
Control channel: 12 DMX512 channels

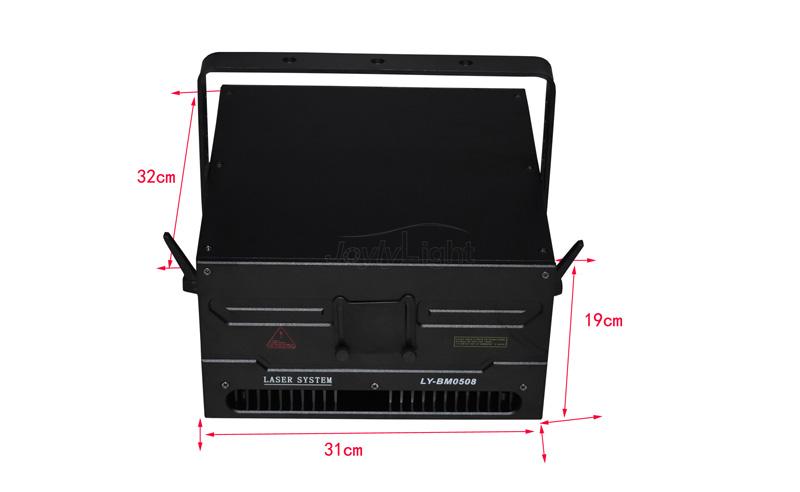

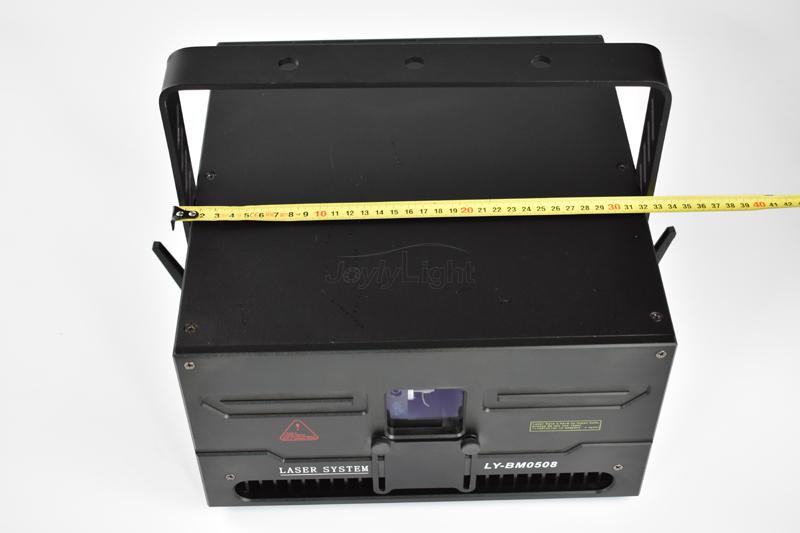

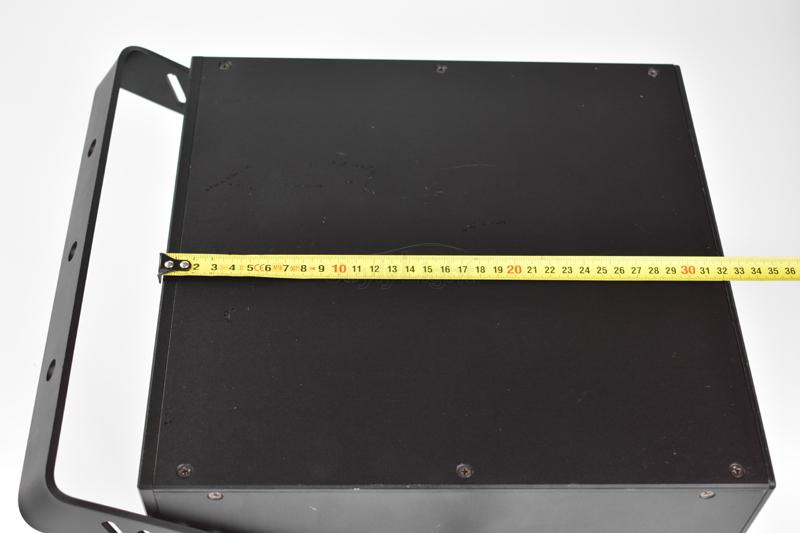

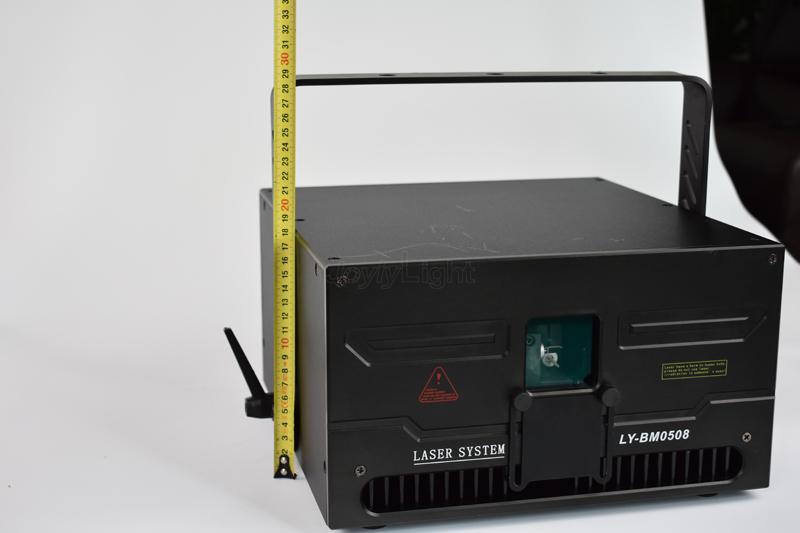

Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling Light body size: 41*37*30 /CM
Carton: One loaded one: Inner 43X45X36CM Net weight: 14KG Gross weight: 16KG
1 in 1: Outside 45X47X38CM
Gross weight: 16.5KG 1i in air box: 44*42*34CM
Net weight: 14KG Gross weight: 21 KG
