| Description | Model | Configuration | Scanner |

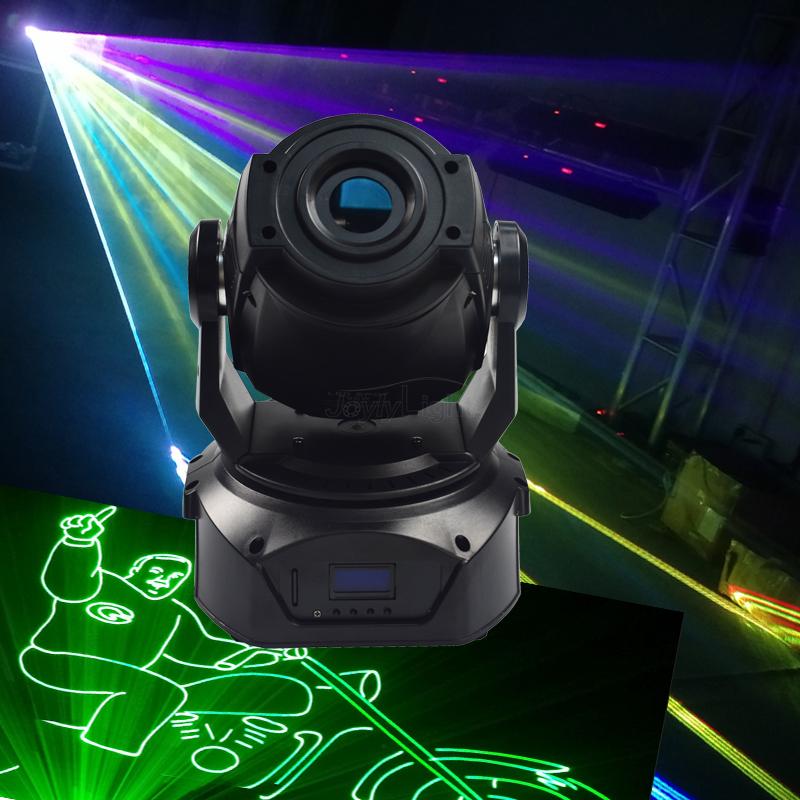

| 2W Animation rgb laser moving head light | LY-M2W-RGB | Red: 300MW/638NM Green:300MW/520NM Blue:1500MW/450NM | DT20KPPS |
| 3W Animation rgb laser moving head light | LY-M3W-RGB | R:500mw/638nm G:500mw/520nm B:2000nm/447nm | DT25KPPS |
| 4W Animation rgb laser moving head light | LY-M4W-RGB | R1000mw/638nm G1000mw/520nm B2000nm/447nm | DT30KPPS |
Rated voltage: AC110-220V ±10%
Rated frequency: 50 ~ 60Hz
Rated power: 120W

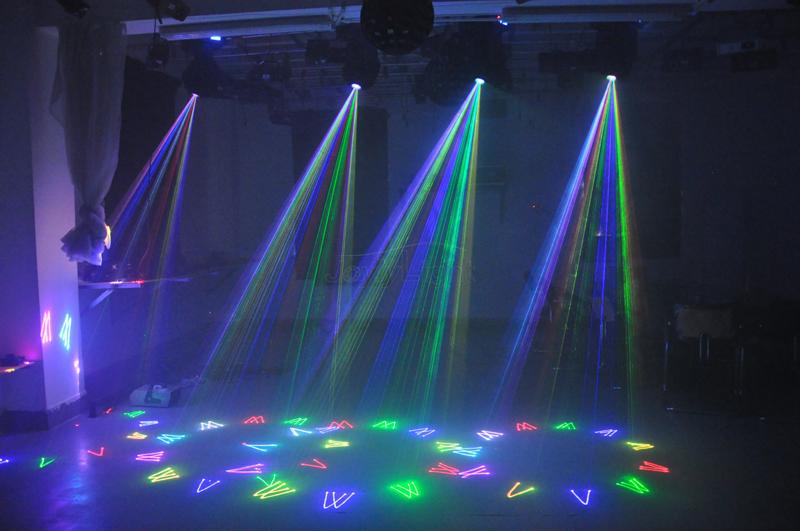

Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects)
Modulation: TTL/ analog
Scanning System: 25KPPS-30KPPS
Scan Angle: 60 degree
Control mode: DMX512, voice control, self-propelled, ,SD
Pan / Tilt: 540° / 270°
Control channel: 12 DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling

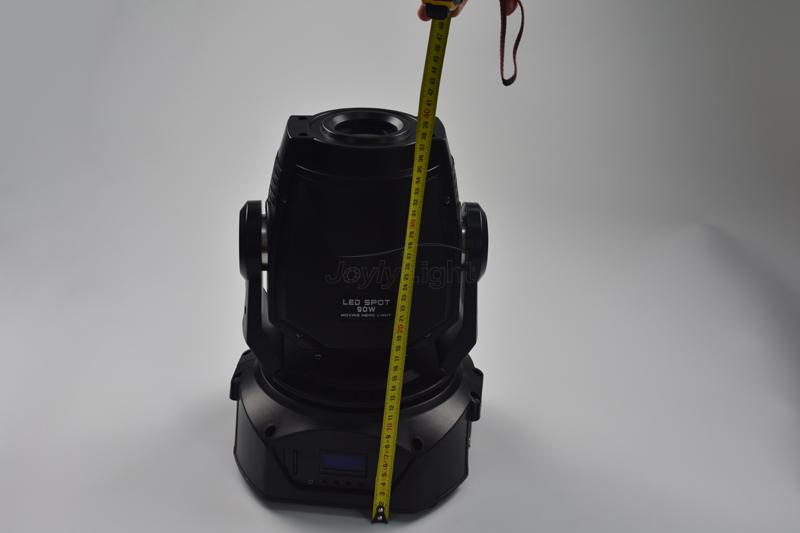

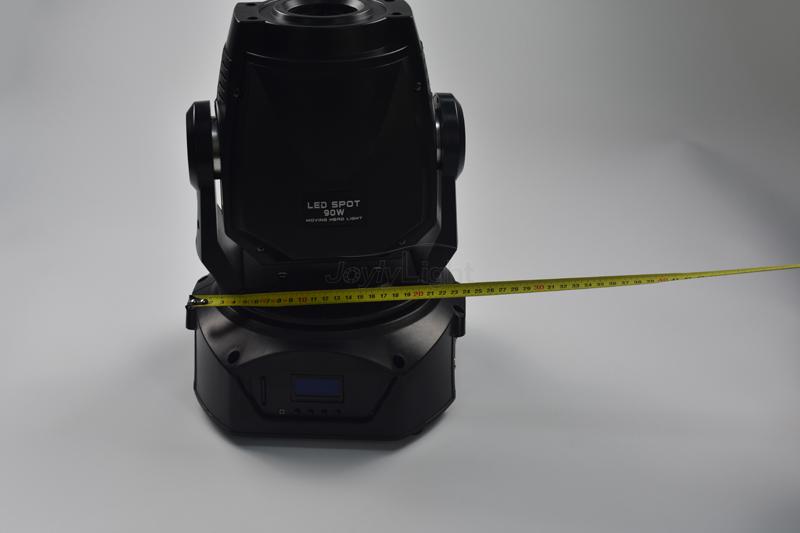

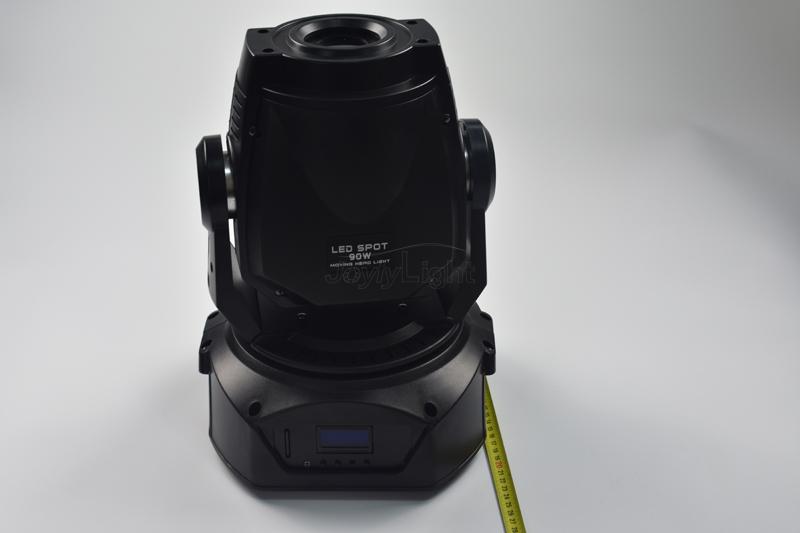

Lamp size: 25*25.5*36/CM
Package Size: 1 IN 1: 37*36*35CM
Net weight: 8KG Gross weight: 9.5 KG
