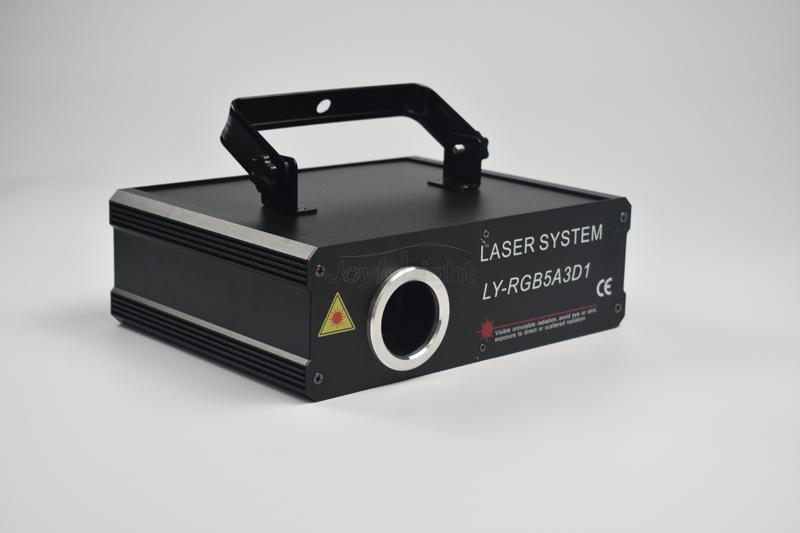

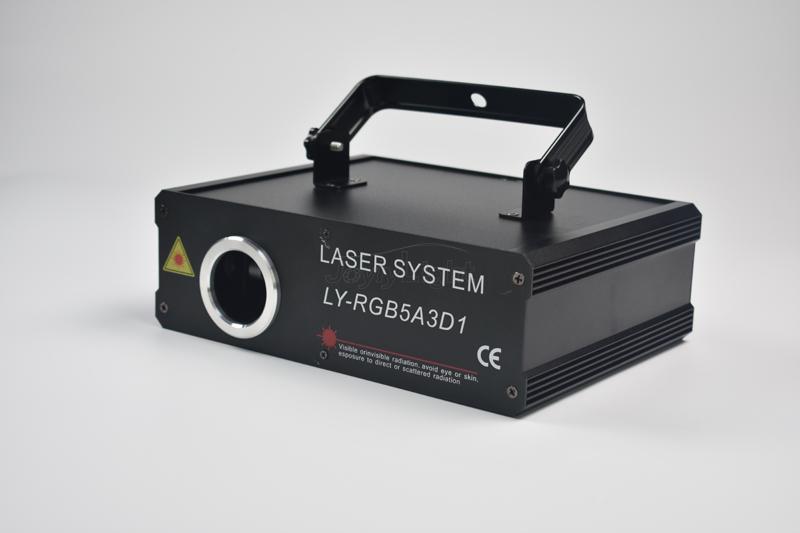

SD card 500 MW full color animation laser

● Product technical parameters:

Rated voltage: AC110-220V

Rated frequency: 50 ~ 60Hz

Rated power: 55W

Laser power: RGB 500MW

Laser light source: Red:150MW/650NM  Green:50MW/532NM  Blue:300MW/445NM

Laser Pattern: 256 Laser Animated Patterns

Effect features: 5 new value-added effects:

1, raster animation 128 map effect.

2, more than one-dimensional pattern effect.

3, Space and time tunnel nebula through the dynamic effect of time and space.

4, traditional geometric lines, animated pattern effects.

5, 3D dynamic 3D pattern effect.

Modulation signal: TTL modulation

Scanning System: Galvanometer Scanning 15KPPS

Scanning angle: plus or minus 20 degrees

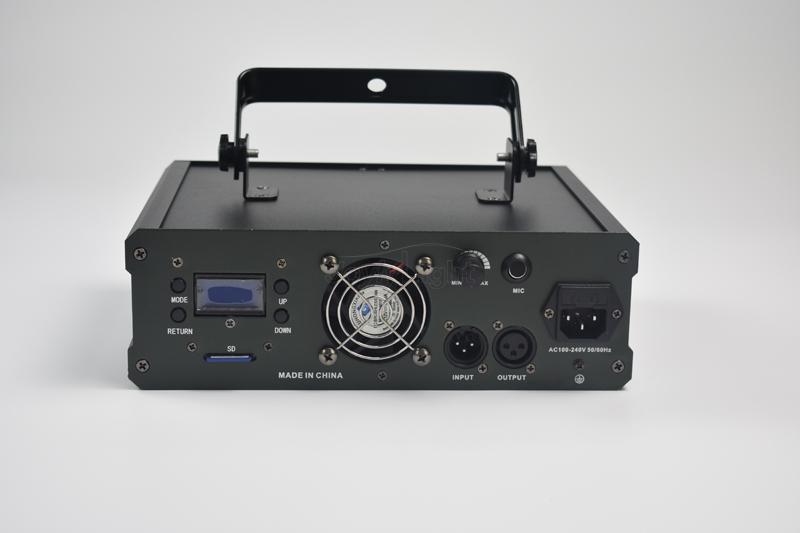

Control method: DMX512, voice control, self-propelled,

Control channel: 12/22 DMX512 channels

Cooling system: fan forced cooling

Working environment: indoor

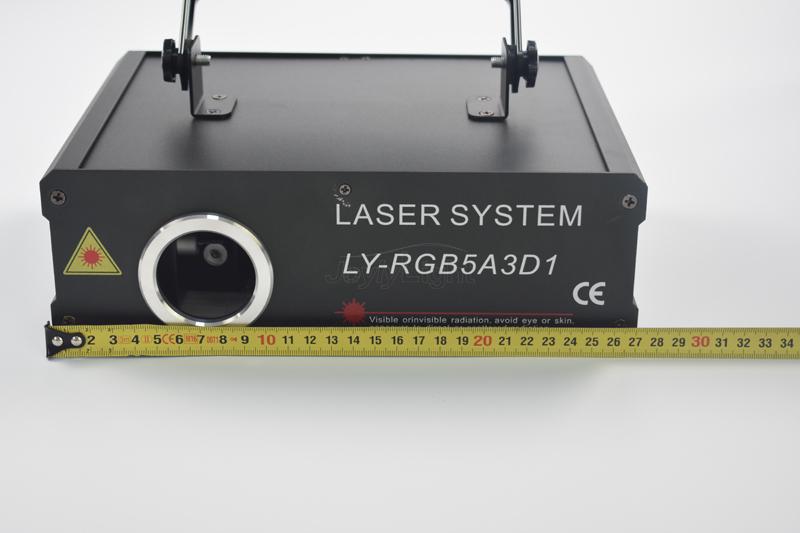

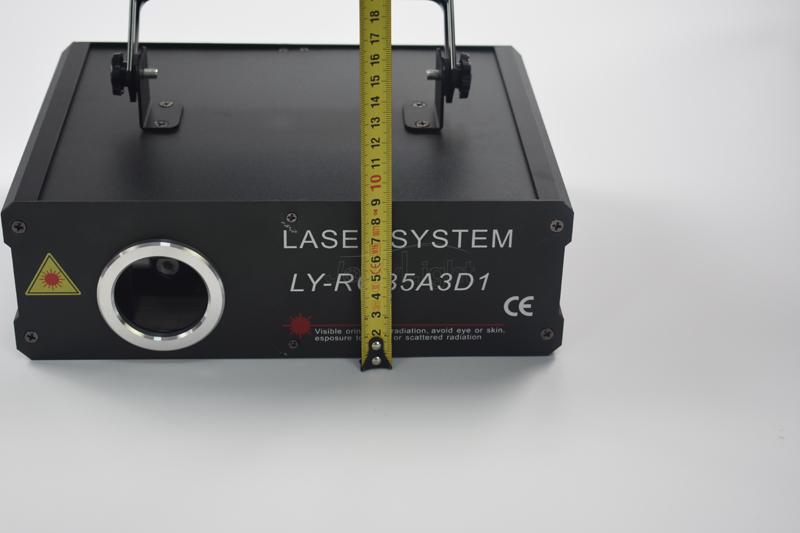

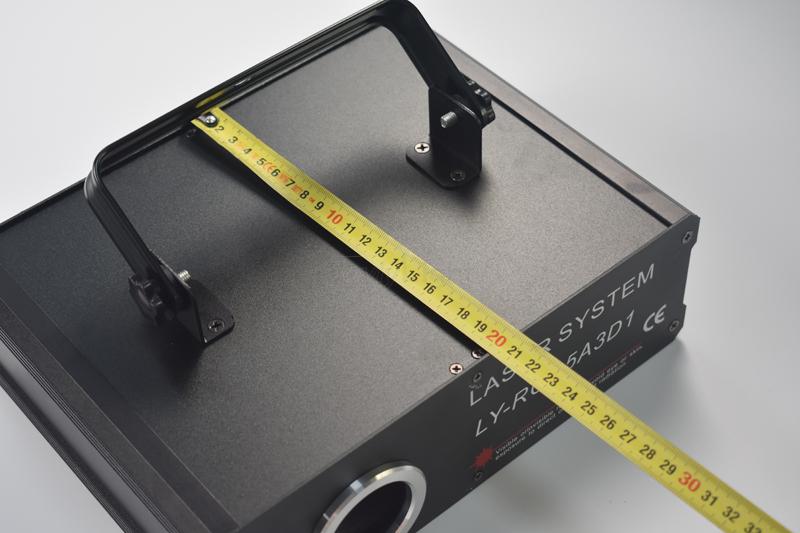

Light  size: 28*21*18/ CM Carton: 1 in 1: 34X26X17CM

NW: 2.5KG     G. w: 3KG

One Pack 4: 55X36X37CM Gross Weight: 13KG
