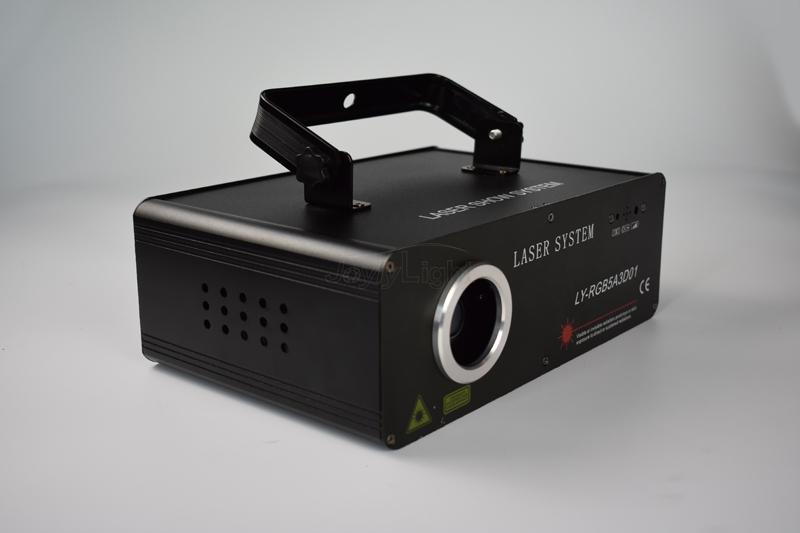

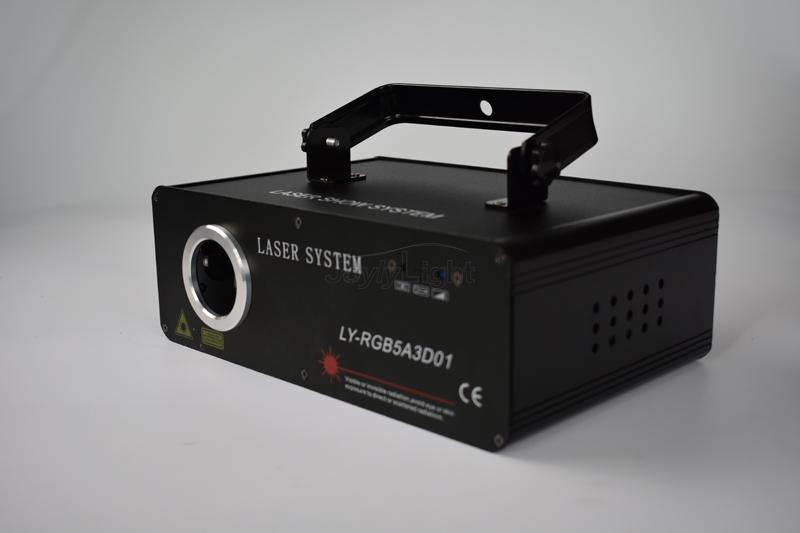

RGB500MW Raster animation laser

● Product technical parameters:

Rated voltage: AC110-220V

Rated frequency: 50 ~ 60Hz

Rated power: 45W

Laser color: RGB full color

Laser Pattern: 128 Laser Animated Patterns

( Effect characteristics: 5 new effects of value:

1, raster animation 68 image effects.

2, more than one-dimensional pattern effect.

3, Space and time tunnel nebula through the dynamic effect of time and space.

4, traditional geometric lines, animated pattern effects.

5, 3D dynamic 3D pattern effect.

Modulation signal: TTL modulation

Scanning System: Stepper Motor

Scanning angle: positive and negative 25 degrees

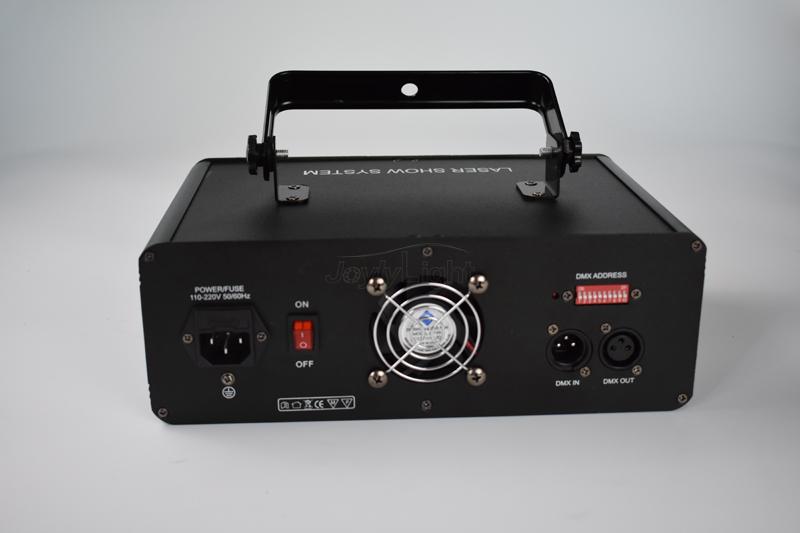

Control method: DMX512, voice control, self-propelled,

Control channel: 12/22 DMX512 channels

Cooling system: fan forced cooling

Working environment: indoor

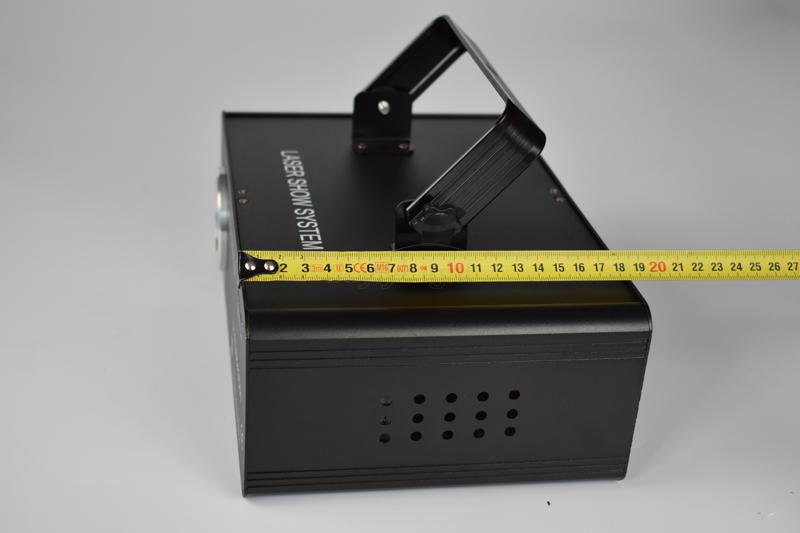

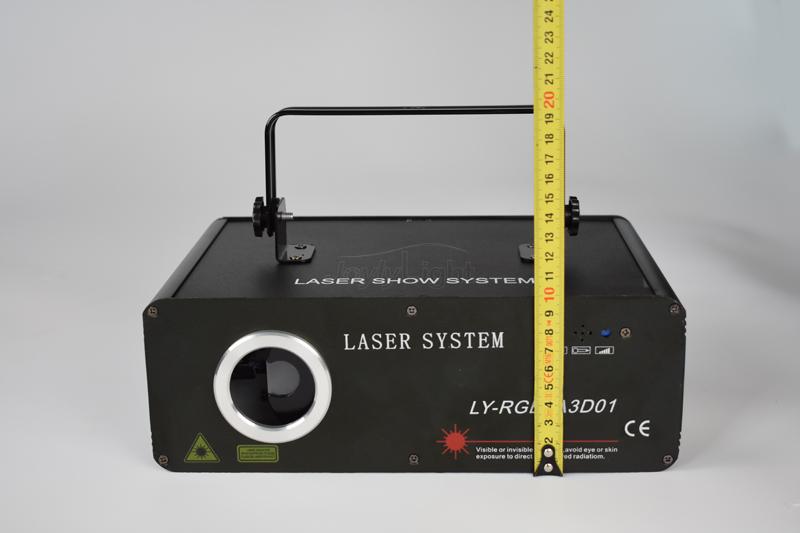

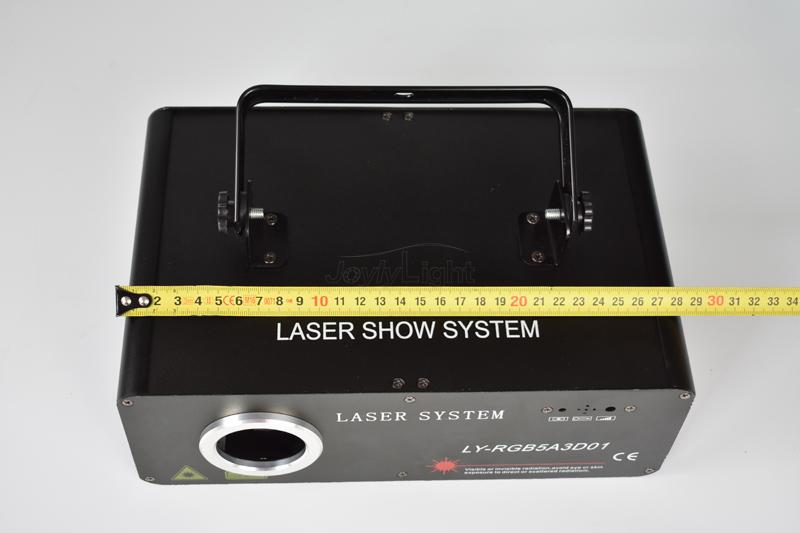

Light body size: 28*21*18/ CM Carton: One loaded one: 34X26X17CM Net weight: 2.5KG Gross weight: 3KG

One Pack 4: 55X36X37CM Gross Weight: 13KG
