| Description | Model | Configuration | Scanner |
| 1W full-color animation laser light | LY-RGB1W-D1 | Red :400mw/638nm Green:100mw/520nm Blue:500nm/447nm | Scanner:20kpps |
| 1.5W full-color animation laser light | LY-RGB01-2 | Red:300mw/638nm Green:300mw/520nm Blue:800nm/447nm | Scanner:20kpps |

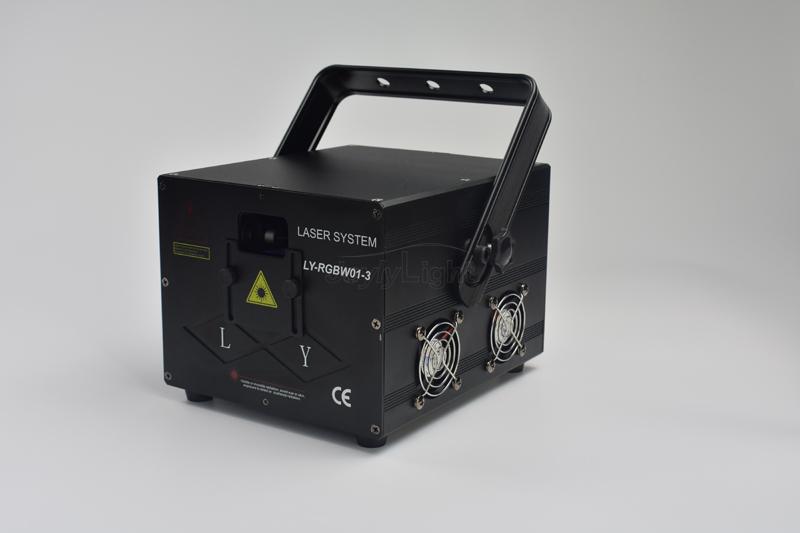

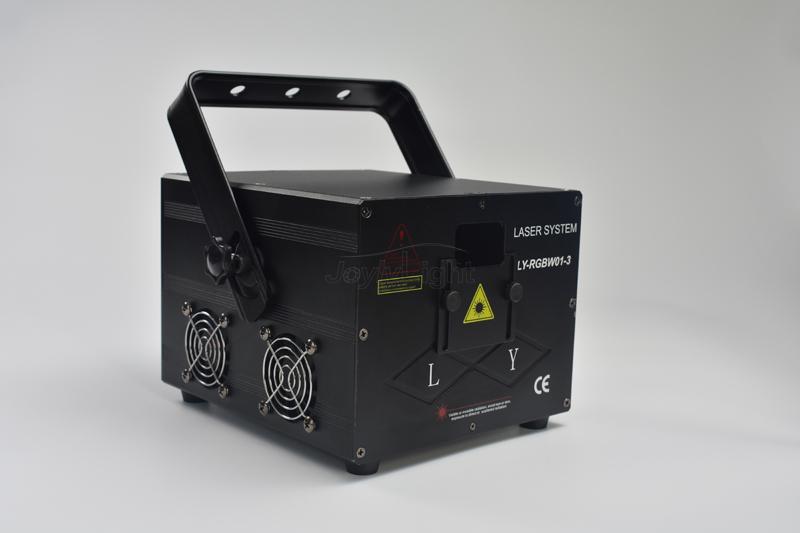

| 2W RGB full-color animation laser light | LY-RGBW01-3 | Red:500mw/638nm Green:300mw/520nm Blue:1200nm/447nm | Scanner 30KPPS |
| Single green G2W SD animation laser light | LY-SDG002 | Green:2000mw/520nm | Scanner 30KPPS |
●Technical parameters:
Rated voltage: AC110-230V ±10%
Rated frequency: 50 ~ 60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System: Galvo Scanning 30KPPS
Scanning angle: plus or minus 20 degrees

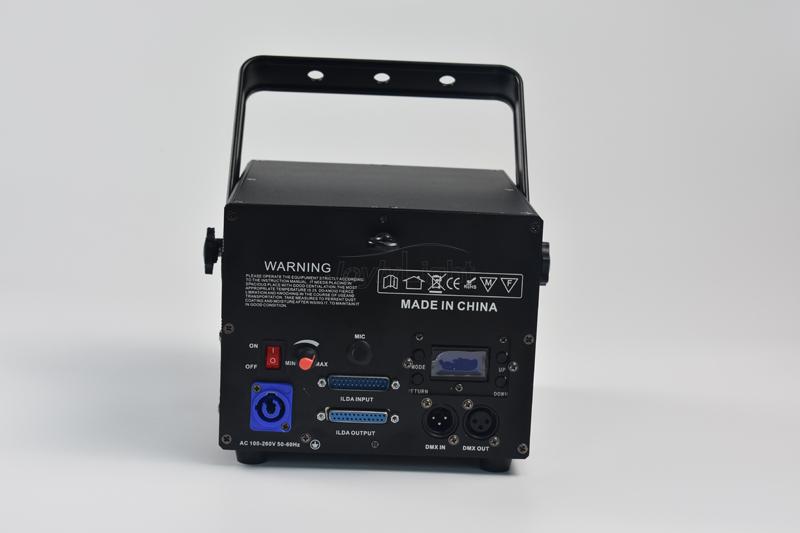

Control mode: DMX512, voice-activated, self-propelled, SD-play operation mode, master-slave, computer ILDA interface
Control channel: 10/21 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. The
Cooling system: fan forced cooling

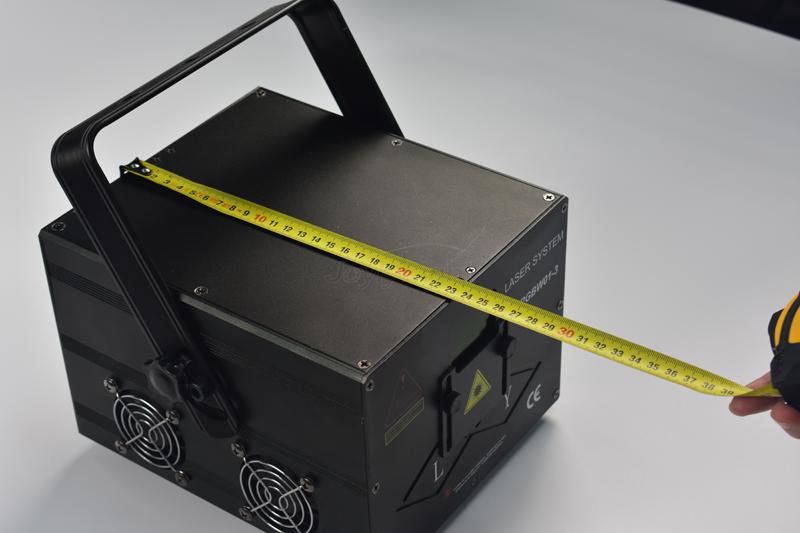

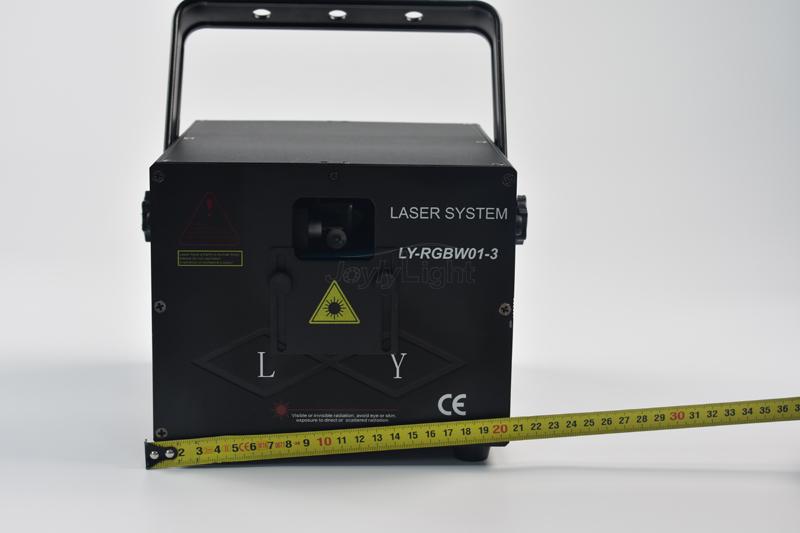

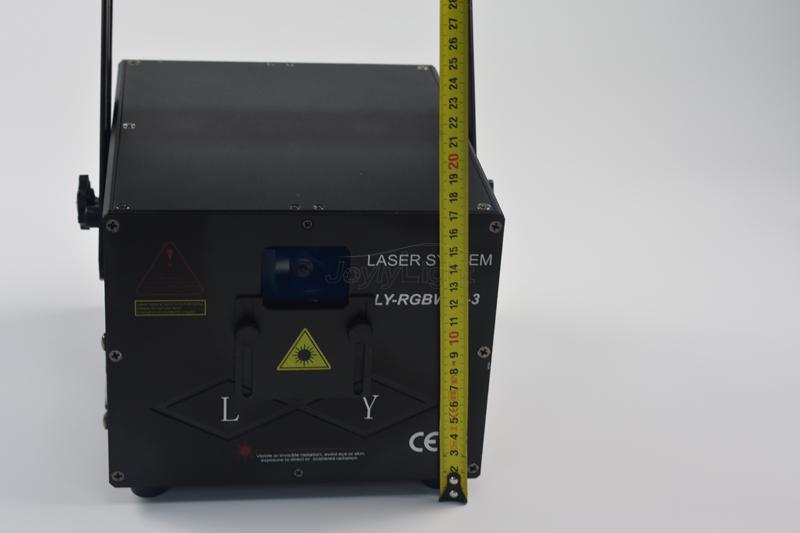

Light body size: 26*22*20 /CM
Carton: One loaded one: 29X25X23CM Net weight: 4KG Gross weight: 5KG
One loaded two: 53X31X26CM gross weight: 11KG
