| Description | Model | Configuration | Scanner |
| SD RGB 2W full color animation laser light | LY-RGBSD02 | R:500mw/638nm G:500mw/520nm B:1000nm/447nm | Scanner:20kpps |
| SD Green 1.5W animation laser light | LY-SDG02A | G1500mw/520nm | Scanner:20kpps |
●Technical parameters:
Rated voltage: AC110-230V ±10%
Rated frequency: 50 ~ 60Hz
Laser color: RGB full color / Green
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System: Scanner:20KPPS
Scanning angle: plus or minus 20 degrees

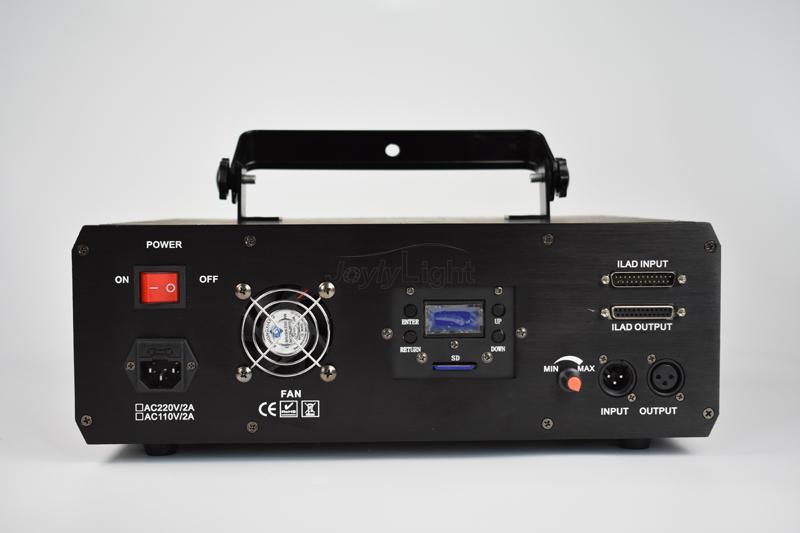

Control mode: DMX512, voice-activated, self-propelled, SD-play operation mode, master-slave, computer ILDA interface
Control channel: 10/21 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: Fan forced cooling

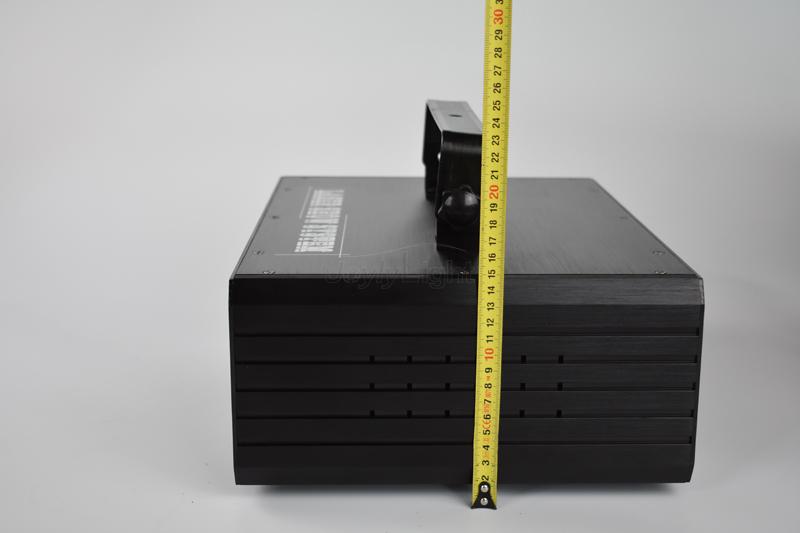

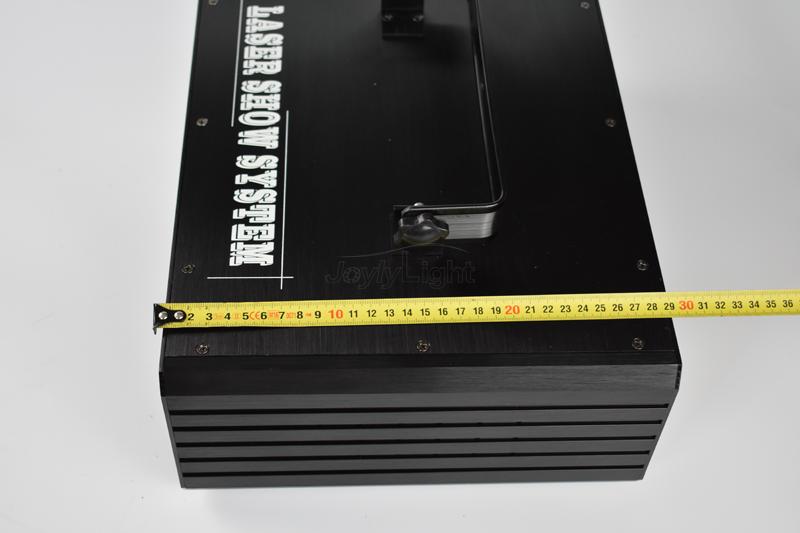

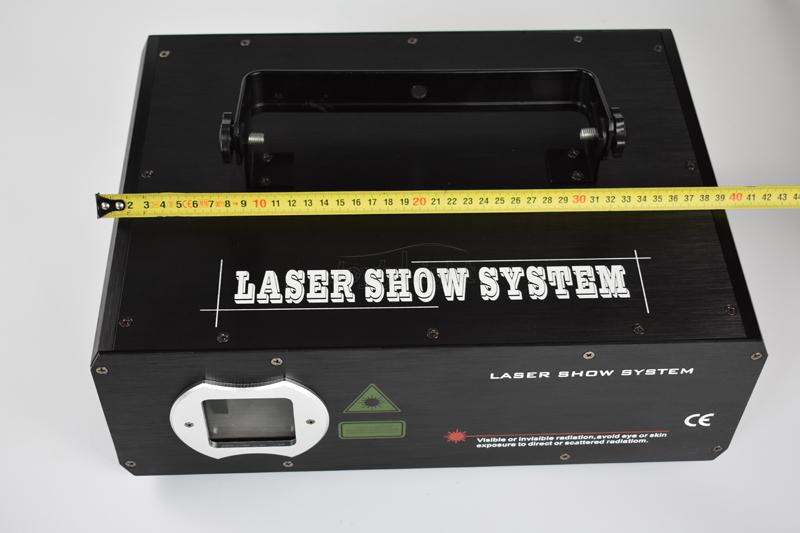

Light body size: 31*26*20/ CM
Carton: 1in 1 : 35X28X20CM NW 2.5KG GW: 3KG
1IN 4: 59X37X43CM
