| Description | Model | Configuration | Scanner |
| SD -RGB 3W full color animation laser light | LY-RGBSD03 | Red:500mw/638nm Green:500mw/520nm B:2000nm/447nm | Scanner: 30KPPS |
| SD -RGB 4W full color animation laser light | LY-RGBSD04 | Red:1000mw/638nm Green:1000mw/520nm Blue:2000nm/447nm | Scanner:30KPPS |
| SD -RGB 5W full color animation laser light | LY-RGBSD05 | Red:1000mw/638nm Green:1500mw/520nm Blue:3000nm/447nm | Scanner: 30KPPS |
| SD -RGB 8W full color animation laser light | LY-SDG008 | Green:8000mw/520nm | Scanner: 35KPPS |
●Technical parameters:
Rated voltage: AC110-220V
Rated frequency: 50 ~ 60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System:30kpps-35kpps
Scanning angle: positive and negative 25 degrees
Control mode: DMX512, voice-activated, self-propelled, SD- ILDA
Control channel: 12/23 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling
Working environment: indoor

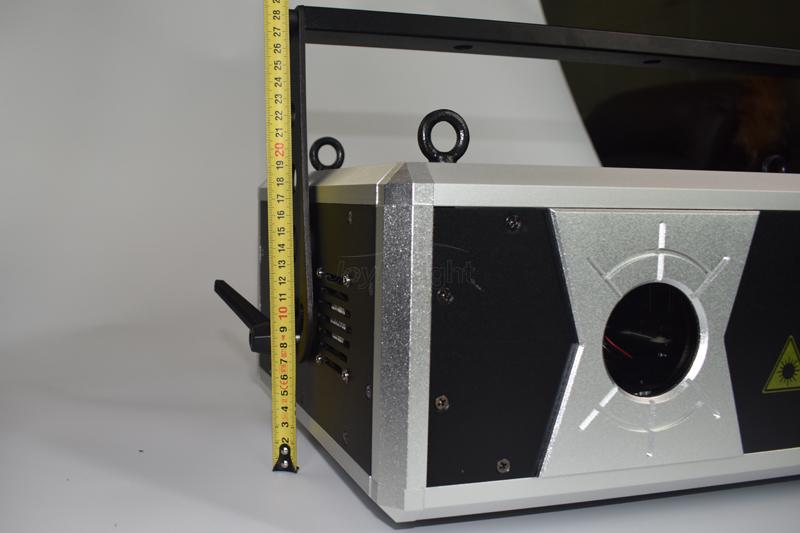

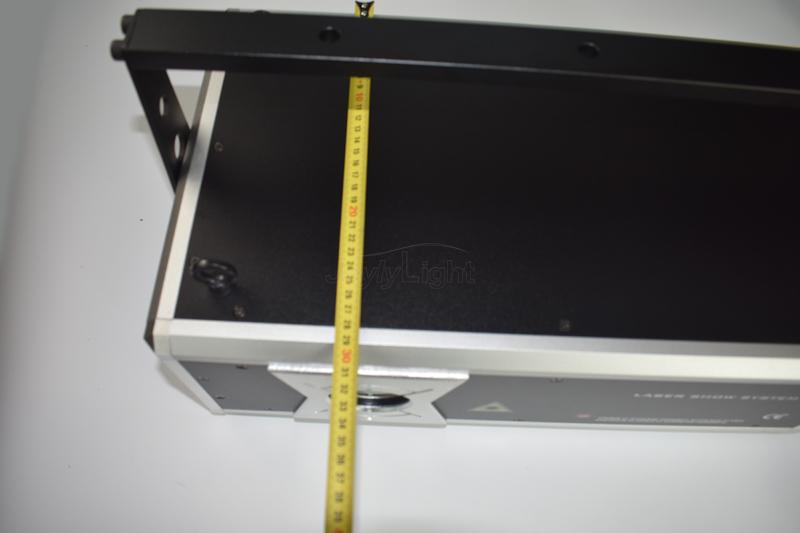

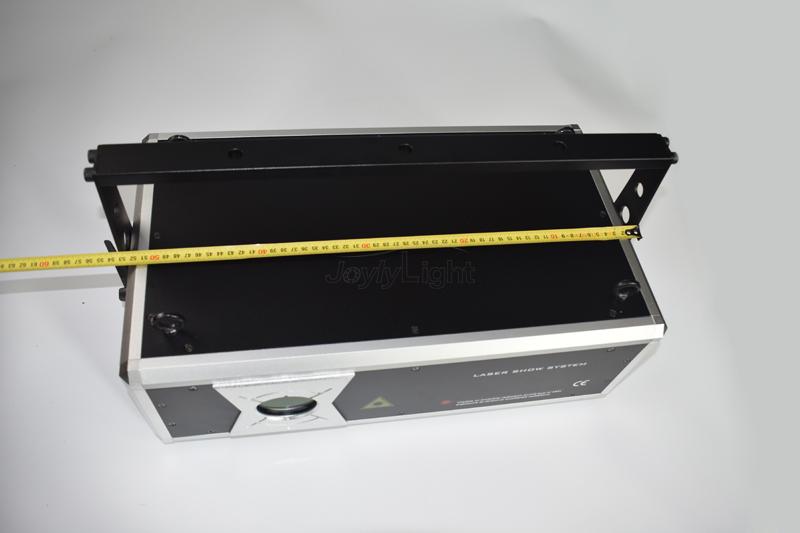

Light size: 55*36*23/ CM
Carton: 1 in1: 59X38X21CM
N. W: 10KG
G. W: 12KG
