| Description | Model | Configuration | Scanner |
| 4W RGB Full color Animation Laser Light | LY-RGBW03-8 | Red:1000mw/638nm Green:1000mw/520nm Blue:2000nm/447nm | Scanner: 35KPPS |
| 3W RGB Full color Animation Laser Light | LY-RGBW03-6 | Red :500mw/638nm Green:500mw/520nm Blue :2000nm/447nm | Scanner: 30KPPS |
| SD 2W Green Animation Laser Light | LY-SDG002 | Green :5000mw/520nm | Scanner: 35KPPS |
Rated voltage: AC110-220V
Rated frequency: 50 ~ 60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects)
Modulation signal: TTL modulation (analog modulation)
Scanning System: Galvo Scanning 25KPPS
Scanning angle: plus or minus 25 degrees

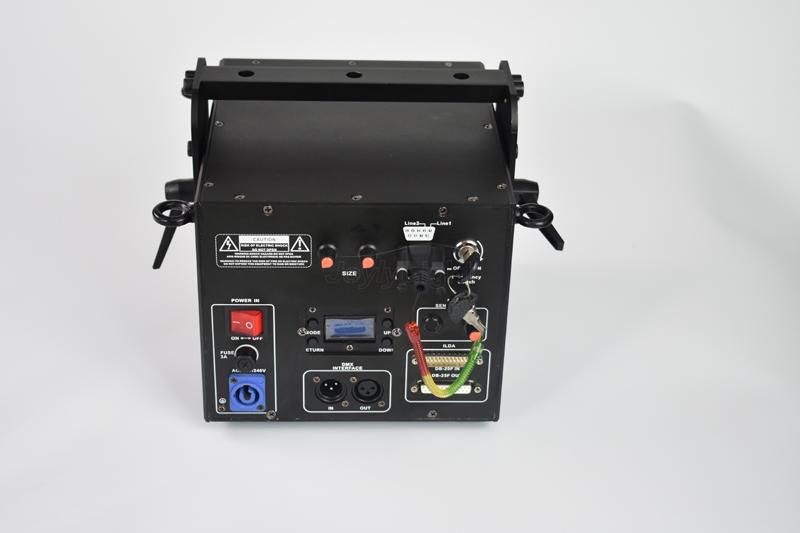

Control mode: DMX512, voice control, self-propelled, computer ILDA interface
Control channel: 12 DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling

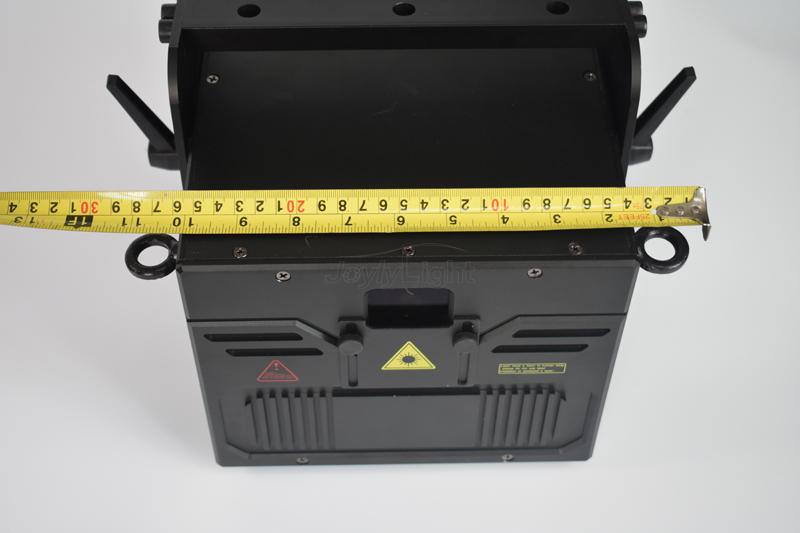

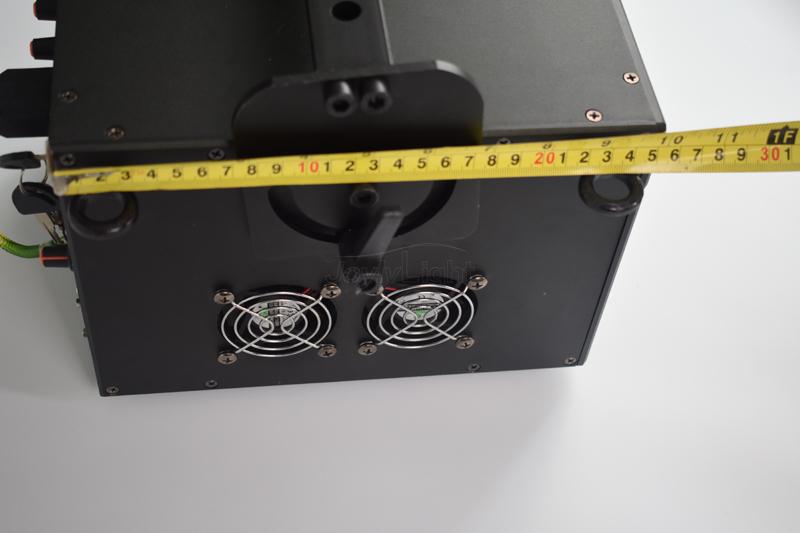

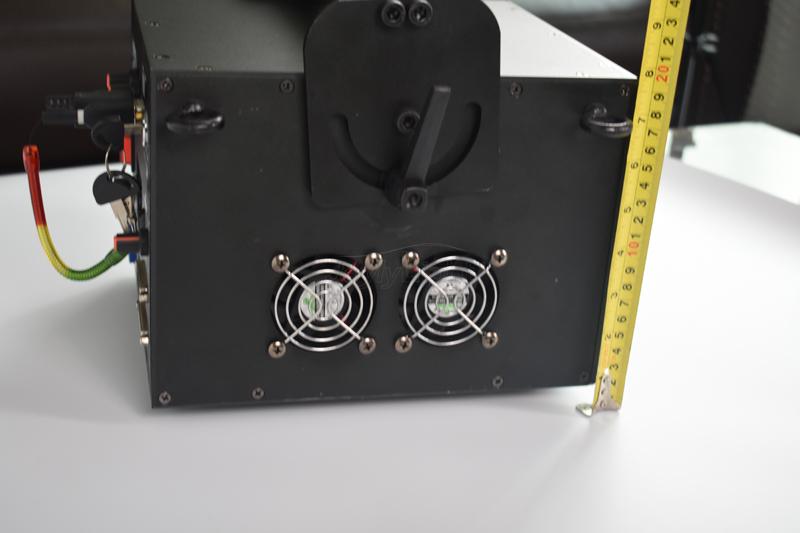

Light size: 33*30*25 /CM Carton: 1 in 1: Inner 36X31X31CM
N W: 8KG G.W: 9KG
1 in 1: Outside 38X33X33CM G.W: 9KG
